Function :

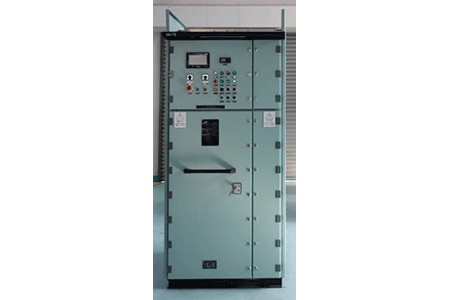

Medium voltage soft starter is a Important equipment for motor start stop control
and protection, suitable for power systems with AC 3-phase voltage ≤ 11kV, frequency
50/60Hz, and short-circuit current ≤ 50kA. It can select the appropriate starting curve
according to different motor parameters, thereby reducing the starting current, lowering
the line voltage drop, reducing the electrical and mechanical impact of equipment, and
providing protection for the line and equipment. The soft stop function can also reduce
the impact of fluid on pipelines and valves.
Features :
Have a full set of type test reports meeting GB/T 3906-2020 and IEC 62271-200, and the type approval certificate of LR & CCS Classification Society.
Multiple starting mode options to meet the starting requirements of various motors and power systems;
The safe and reliable mechanical interlock function ensures the safety of equipment and personnel.
The highly integrated product integrates isolation switches, HV fuses, power components, and bypass contactors together, thereby minimizing system configuration and making the equipment compact;
