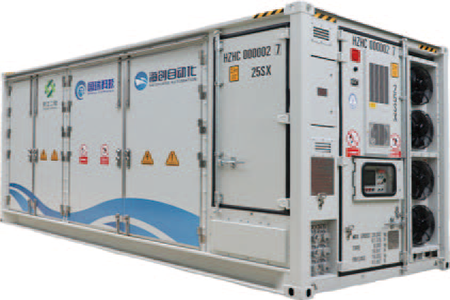

Function : The marine containerized mobile power supply is a modular, mobile, plug-and-play marine energy storage device that integrates a high-capacity lithium iron phosphate battery system into a standard container. It is specifically designed to meet the power needs of ships, enabling zero emissions, low noise, high energy efficiency, and high comfort for ships. It is an important technical equipment for the shipping industry to transform towards green, low-carbon, and intelligent development. The product meets the requirements of classification society specifications such as “E-25 Marine Containerized Mobile Power Supply” and “Battery Power Specification for Marine Applications”.

Features :

(7)Intelligent interconnection: the product features Beidou high-precision positioning, the working status and alarm information of the containerized mobile power supply are transmitted to the cloud via a 4G antenna.

(6)Convenient maintenance operation: The operation surfaces are centrally arranged, allowing easy access for maintenance in both the electrical room and the electrical cabin.

(5)Strong adaptability to high-temperature environments: The electronic control part and the unit of the water cooling system are arranged separately, which are applicable to the high-temperature environment of the ship's deck.

(4)Intelligent identification of power sockets: The power socket supports multi-plug connection, automatically adjusting protection parameters based on the number of plug-socket connections, without being limited by the number of charging couplers of onshore charging piles; The power socket can prevent live plugging; The two battery pack power sockets are able to prevent incorrect connection.

(3)Safety and reliability: The battery compartment, electrical room, fire protection room, and water-cooled unit room are safely isolated in different zones. The battery compartment meets the A60 fire rating, and employs active and passive integrated fire protection technology (heptafluoropropane), providing multi-level safety protection.

(2)High efficiency and flexibility: Universal, modular, and standardized design, adopting quick-connect interfaces with anti-misplug connectors for plug-and-play functionality.

(1)Excellent energy efficiency: The first large battery pack design in China, featuring high energy density, low self-depletion rate, high charge-discharge rate, and long cycle life.

System specificationsComprehensive alarm display and control functionVideo surveillance functionEmergency exhaust functionFire detection and extinguishing functionsTemperature control functionPower distribution management functionBattery management functionMain functionsProduct composition

The product monitors the working status of the battery
system and various equipment inside the container in a
centralized manner, and provides alarms and emergency
protection measures for any malfunctions that occur.
A good human-machine interface assists operators in
observation and operation.

The product monitors the situation inside the battery
compartment in real time, with the video connected to the
ship's CCTV system via a network cable.

The emergency exhaust fan is interlocked with the
combustible gas detection system. The combustible gas
detector monitors the combustible gas concentration in real
time. When the combustible gas concentration in the battery
compartment is detected to be greater than 20% of its lower
explosive limit (volume fraction), the power supply to the
battery system and all non-explosion-proof electrical equipment
in the battery compartment is automatically cut off, the
air inlet and outlet fire dampers are opened, and the emergency
exhaust fan is started after both dampers are opened to
discharge the combustible gas out of the container.

The battery compartment is equipped with temperature
and smoke detectors as well as combustible gas detectors,
which can predict the risk of thermal runaway in advance
through multi-sensor analysis.
Fire extinguishing devices and alarm devices are arranged
in separate compartments, with one set of fire extinguishers in
operation and one standby. The release methods of fire
extinguishing agents include automatic release, local release,
remote control release, and mechanical emergency release

Based on the different working environments and protection
level requirements of various equipment, water cooling
and air conditioning cooling are adopted for heat dissipation
of battery packs and electrical equipment respectively

※. DC main circuit control and protection function
※. Power distribution and protection function
※. Power supply management and data transmission
※. UPS backup power supply

※ Battery monitoring
(1)Automatically or manually enable and disable high
voltage for the battery pack, and start and stop external
output;
(2)Isolate the faulty battery cluster in case of a single-cluster
failure, and execute emergency control of the battery pack
to enable/disable high voltage and start/stop external output;
(3)Manually perform balanced charging of battery clusters
during maintenance;
(4)Execute fault reset;
(5)Control the maximum allowable charge/discharge
power, current, and voltage of the battery pack;
(6)Monitor and display the voltage data of individual
battery cells;
(7)Monitor and display the high-voltage enabling/disabling
status of the battery cluster;
(8)Monitor and display the voltage, current, and
charging/discharging status of the battery cluster;
(9)Monitor and display the insulation resistance, SOC, and
SOH data of the battery cluster/pack;
(10)Monitor and display the voltage, current, and
charging/discharging status of the battery pack;
(11)Monitor and display data of battery cell temperature,
busbar temperature inside the high-voltage box, and ambient
temperature of the battery compartment.;
(12)Monitor and display the highest battery cell voltage
and serial number;
(13)Monitor and display the lowest battery cell voltage and
serial number;
(14)Monitor and display the highest battery cell temperature
and serial number;
(15)Monitor and display the lowest battery cell temperature
and serial number;
(16)Monitor and display the environmental temperature,
pole terminal temperature, and MSD temperature in the
battery pack.
※ Alarm functions
(1)Alarm for overvoltage, undervoltage, and large voltage
difference of battery cells;
(2)Alarm for over-temperature, under-temperature, large
temperature difference, and rapid temperature rise of battery
cells;
(3)Alarm for overvoltage, undervoltage, overcurrent,
insulation, and low SOC of battery clusters/packs;
(4)Alarm for large voltage difference and large circulation
current in battery clusters;
(5)Alarm for abnormal actuation of battery cluster relays
and fuse faults;
(6)Alarm for voltage and temperature acquisition faults;
(7)Alarm for high temperature of copper bars in the
high-voltage box, and excessively high or low ambient
temperature;
(8)Alarm for communication faults.
※ Protection functions
(1)Protection against overvoltage, undervoltage, and large
voltage difference of battery cells;
(2)Protection against over-temperature, under-temperature,
large temperature difference, rapid temperature rise, and
thermal runaway of battery cells;
(3)Protection against overvoltage, undervoltage, overcurrent,
and insulation fault of battery clusters/packs;
(4)Protection against large voltage difference and high
circulating current in battery clusters;
(5)Protection against abnormal actuation of battery
cluster relays;
(6)Protection against voltage and temperature acquisition
faults;
(7)Protection against high temperature of high-voltage
box copper bars and over-temperature/under-temperature of
the environment;
(8)Protection against communication faults;
(9)Protection against protection function faults;
(10)Protection against emergency stop and abnormal
DC24V voltage.
※ Parameter settings
(1)Three-level alarm parameter setting for overvoltage,
undervoltage, and large voltage difference of battery cells;
(2)Three-level alarm parameter setting for over-temperature,
under-temperature, and large temperature difference of
battery cells;
(3)Three-level alarm parameter setting for overvoltage,
undervoltage, overcurrent, insulation, and SOC of battery
clusters/packs;
(4)Three-level alarm parameter setting for large circulation
current of battery clusters;
(5)Three-level alarm parameter setting for high temperature
of high-voltage box copper bars and over-temperature/
under-temperature of the environment.

As an energy storage device, containerized mobile power
supply provide energy for ships and conduct safety management
during the battery charging and discharging process.

The containerized mobile power supply consists of
battery system, busbar distribution system, temperature
control system, fire protection system, combustible gas detection
system, ventilation system, lighting system, video surveillance
system, integrated alarm display and control system, and
battery swapping interface, etc.
