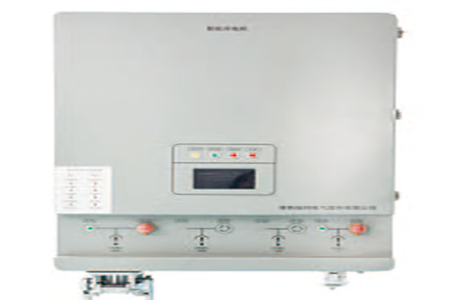

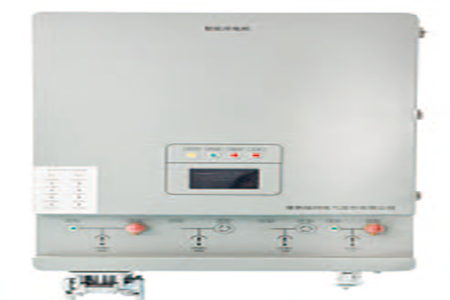

AJZ intelligent shore power pile (shore power junction box) / AJZ

Consult Download

Function : In order to solve the air pollution problem of port terminals, the state is speeding up the construction and transformation of port shore power facities. Shore power pile is an important component of shore power facilties, and it is the power connecting device to introduce shore power when the ship stops. However, the old generation of shore power piles do not have the functions of communication and digital management, there are no monitoring alarm, incomplete security protection and other problems, resulting in the low utization rate of shore power for short-term docking ships. The new generation of intelligent shore power pile has the characteristics of inteligent interaction, safe and efficient, convenient and fast, so as to improve the efficiency of shore power utilization and improve the current situation of low utiization rate of shore power. Intelligent shore power pile is equipped with power fast connection and network communication interface, which has the functions of pover supply and distibution, power metering, power monitoring, shunt charging, short circuit, overload, lightning protection, ett. At the same time, for ships without power quick connection plug, shore power adapter bax can be provided. The products are sutable for the new construction and reconstrucion af container terminal, dry bulk cargoterminal, general cargo terminal, cruse terminal, RO Ro Terminal, passenger terminal and business ship ternal. Meet the requirements of JIS 155-2019 « Technical specification for construction of whart shore power facines) and ITS 155-1-2019 « Technical specification for detection of wharf ship shore power facilities ))

Features :

Excellent environmental adaptability, equipment protection grade up to IP56, with the ability to work in salt spray, mold, high and low temperature, hot and humid environment, envronmental adaptabilty to meet the requirements of classification society.

Complete safety protection, with lightning, leakage protection, door alarm protection, anti power connector hot plugging measures, emergency stop device and eye-catching safety protection signs;

Various installation forms, including wall mounted, horizontal and floor type, can be customized to meet the needs of different occasions;

Model namingTechnical indexProduct composition Product functions

Rated voltage: AC380v±10%
Frequency: 50Hz
Rated current: 63A, 125A. 250A, 350A
Protecion grade: IP56
Electnc energy metering accuracy: not less than 0.25 level
Working environment temperature
Installation mode: honzontal, floor and wall mounted

Product size specification

Socket: it has mechanical ant dislocation structure and grounding interlocking device, it has grounding contact and interlocking contact. When the plug is inserted into the socket the grounding contact can be contacted before other contacts, and the interlocking contact can be contacted after the main contact.

Optional description; when one 350A socket is selected, up to three 125A or 63A sockets can be configured, when one 350A
socket and one 250A socket are selected, up to two 125A or 63A sockets can be configured. Others are similar.

The intelligent snore power pile is mainly composed of power connector, circuit breaker, leakage protector, surge protector, cisplay screen, serial port server, input and output module, inteligent meter, emergency stop module, ett. Receving the shore power supoly of the wharf, distributing power to the ship through the orcut breaker and pover connector, playing the role of carrying electric energy transmission.

•Shore power cable protection circuit is set, which has the function of cable overload alarm and protection;

•it has the function of output isolation, and the unused pover connector remains in the power-off state;

•It has the function of under voltage protection;

• Data acquisition and upload function: the data acquisitionmodule collects voltage, frequency, current, active power,power factor, power consumption time, power consumption,switch closing and other status information, which is transmitted to the cloud through 4G module or optical fiber network;switch closing and other status information, which is transmitted to the cloud through 4G module or optical fiber network;

• It has the ON / OFF status indication function of electrical connector;

• It has the function of emergency stop;

• The display screen can display voltage, frequency, current, active power and power in real time Rate factor, power consumption time, power consumption and other information as well as over voltage and over current alarm state alarm and other status information;

• Remote control power supply function, by the clent control on
or off power switch;

• with the inteligent shore power management function, the terminal tenants can manage the shore power piles through the PC login server, including the information of power piles ship owners, order information management, etc. MSA can read the information of terminal tenants, ship owners and orders through login server.

• Online payment funcion, each socket charges independenty,enters the payment systern by scanning the code, selects the corresponding socket to power the ship, supports online payment and billing;
