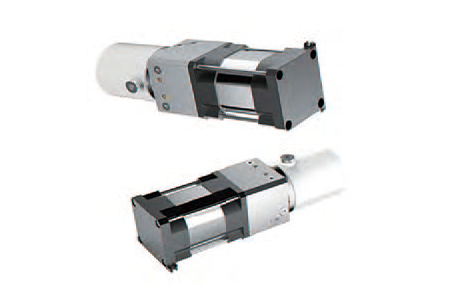

GRLPU Hydraulic micro power unit

GRLPU Hydraulic micro power unit / GRLPU

Function : Hydraulic micro power unt can output hydraulic power source only by supplying power for motor. It is widely used in hydraulic system with small flow, high pressure, no hydraulic power source and imited installation space.
Features :

Compact structure, small volume, ight weight, easy to use

The installation positon and angle are not limited, and can be installed at will

The output pressure rang is large, up to 180Bar;

The same shape, a vanety of flow specifications, can meet the needs of different customers;

Product compositionShape and interfaceCharacteristic curvesPin AssignmentHydraulic principleModel namingTechnical index
The hydraulic micro paver unit adopts the structural form of module design, which is mainly composed of the following parts
• Electric machinery
• Plunger pump
• Tank
• Relet valve
• Hydraulic lock
•Protection grade, |P40
•Installation: arbitary
• Mounting: 4-M6
•Operating temperature: -10°C- +65°C
• Weight: 4Kg
• Pumo type: radial piston pump
•Pump body material: aluminum alloy
• Working pressure: see hydraulic, characteristic curve table for detais
•Maximum pressure: 180Bar

•oi displacement see hydraulic characteristic curve table for details

• Output direction, positive and negative bidirectional

• Tank volume: 0.3L
• Hydraulic medium; mineral oil according to DN 51524 other
media on request)
•Working voltage: AC20OV 50/60Hz, AC380V 50/60H2
• Staring current: 4A
•Rated current: 1.6A
•Working mode: 53-10%-30min
•Overload protection: 140°C
