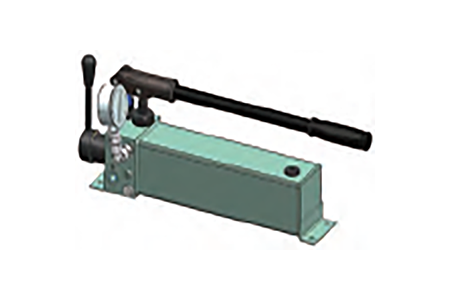

GRHP Emergency hand pump / GRHP

Consult Download

Function : GRHPemergency hand pump is used for hydraulic and electro-hydraulic actuator function test and emergency operation after sudden power loss of actuator under working conditions, so as to achieve therequired working state of valve.

Features :

compact structure, light weight, simple operation, easy to carry.

High output pressure, large displacement and reliable operation;

Shape and interface operation using hand pumpHydraulic principle Product compositionTechnical indexModel naming

Emergency hand pump(customers can customize according to their own displa
cement to own displacement and hydraulic pipe
ength).

Connect A and B hose to corresponding A and 8 pot tog actuator;
Switch HP handle to open or close position of valve;
Press the HP to observe whether the valve position indicator is opened or closed in place;
Dismantle the hose connected with actuator A and B after using the hand pump.

The emergency hand pump adopts the structural from of module
design, which is mainly composed of the following components.

• Hand pump

• Manual directional valve

• Valve block
• pressure gauge

• Check valve

• Relief valve

• Tank
• Hydraulic interface, hydraulic hose, etc

• Installation form: portable, fixed(choice)
• Valve matenal: Stainless steel
• Operating temperature: -10°C - +65°C
• Hydraulic medium: mineral oil according to DIN 51524(ather media on request)
• Worling pressure: 50-200Bar
• Maximum pressure,250Bar
