Single phase AC and DC filter film capacitor

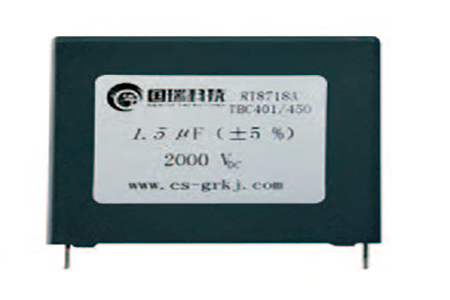

Single phase AC and DC filter film capacitor / RT8718A

Application : It is used in high power UPS, switching power supply, frequency converter and other equipment as exchange filter to control harmonics and improve power factor
Features :

It has the advantages of high pressure resistance, strong self-healing, easy installation, and insulation of flame retardant cover. It can withstand high harmonic current, high dV/DT

Model namedDetailed parametersPrinciple block diagramOperating instructionsAttachment configuration

第1~5位 型号代码

电压类型

相数

额定电压

标称容量

容量等级

引出方式

引线中心距

端子类型

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

R

T

8

6

3

8

A

1

1

2

4

7

7

J

3

4



第1~5位 型号代码

第6位 电压类型

8=直流

9=交流

第7位相数

A=单相

第8~10位额定电压

例:112=11×102 V=1100V, 451=45×101 V=450V

第11~13位标称容量

例:477=47×107pF=47×104nF=470μF

第14位容量等级

J=±5%

K=±10%

M=20%

第15位引出方式

3=螺栓式

4=螺孔式

第16位引线中心距

4=32mm

7=45mm

6=50mm

第17位端子类型

2=M6

3=M8

容量范围

10 mF~3000 mF

额定电压

600 VDC~3000 VDC

420 VAC~700 VAC

电容量允许偏差

J:±5% K:±10%

介质损耗角正切

≤0.002(25,100Hz)

运行温度范围

-40 °C~ 85 °C

贮存温度范围

-40 °C~ 105 °C

耐电压

极间:1.5UN  (10s)

极壳之间:  UN +1000V (10s)

过电压

一天之内最长持续时间

1.1UN :  有负荷时间的30%

1.15UN: 30min/day

1.2UN : 5min/day

1.3UN : 1min/day

1.5UN : 30ms

安装

螺栓M12

最大电极扭矩

M6: 5Nm

M8: 6Nm

最大安装扭矩

12Nm

湿度

95% (T test=56days)

最高使用海拔

2000m

预期寿命

100 000 h  @UN ;qhotspot70
