Function : The Ground-Check device can be used as a monitor device detecting the grounding continuity when the ship docks at shore and is powered through shore power. The device conforms to the 2014/35/EU Low Voltage Directive and the 2014/30/EU Electromagnetic Compatibility Directive.

Features :

Passive contact output for fault and operational status.

Intuitive grounding montering and equipment operation status display:

Flexible adjustment method for alarm resistarice threshold:

Supports input of mutiqie specifications of power supplies:

Model namingInstallation dimensionsOutline dimensionsTechnical indexProduct composition

Embedded in the panel, installation dimensions:
164x69 (mm), 4xM4 screw
TERMINAL
Baseplate installation, installation dimensions:
106.5x43.12 (mm), 2xΦ4 Through-Hole.

MONITOR

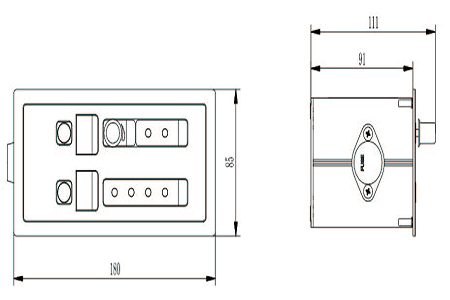

Outline dimensions: 85x180x91(mm, wide x height x depth)
TERMINAL
Outline dimensions: 62x116x35 (mm, wide x height x depth

Input voltage:25VA, 120-240Vac, 50Hz；
15W, 110-250Vdc；
15W, 24-48Vdc；
20VA, 48Vac, 50Hz；
Output drive current: not less than 100 mA;
Open-circuit output voltage: 23.5 Vdc±0.5 Vdc;
Pull-in time: not more than 750 ms;
Auxiliary contact:Operating status (changeover contact);
Fault status (changeover contact);
Trip status (changeover contact);
Grounding resistance monitoring range: 0~100 Ω;
Terminal characteristic: Zener;
Terminal Zener voltage: 5.6 Vdc±0.1 Vdc;
Operating temperature: -25 ℃~+55 ℃.

The device is consisted of a monitor and a terminal. The monitor is installed on the side
of ship normally in the Medium Voltage Shore Connection device. And the terminal is
installed on the side of shore normally in the dock transformer cabinet or distribution cabinet.
Each monitor needs to be paired with a terminal for use.
